Sudbury

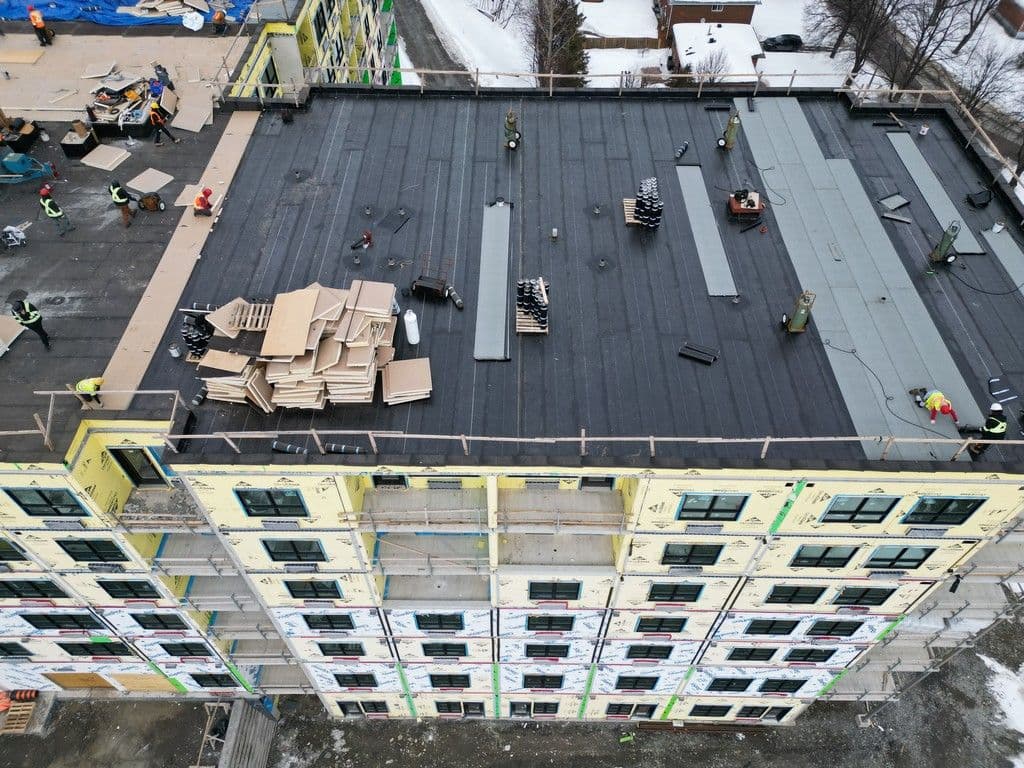

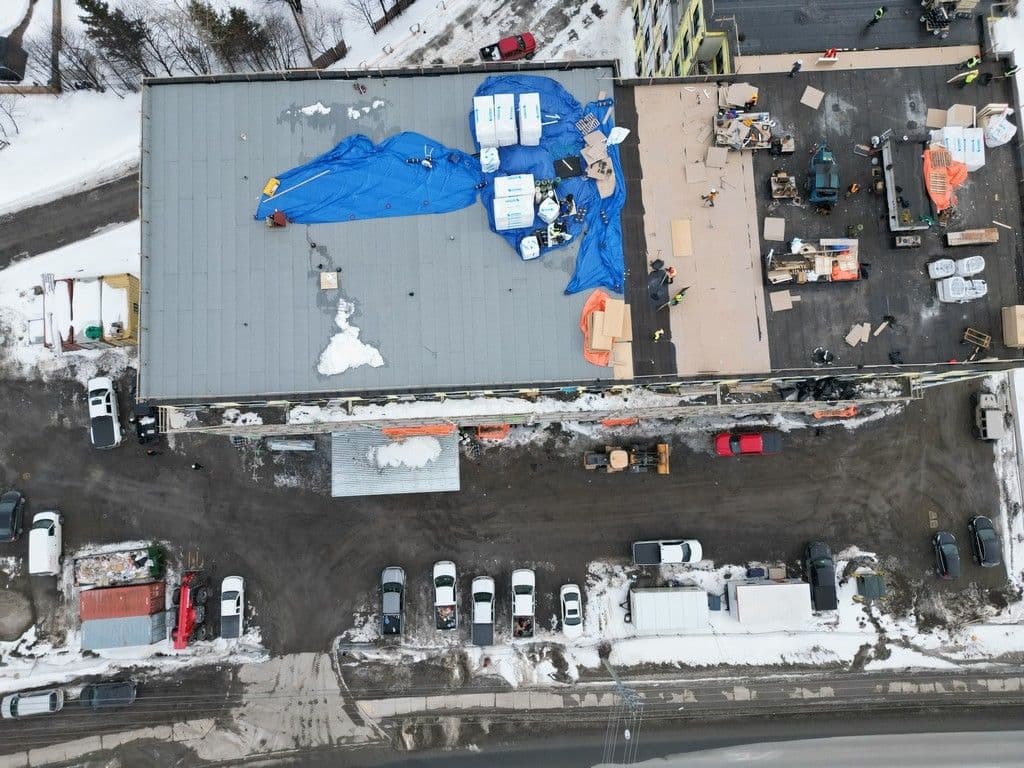

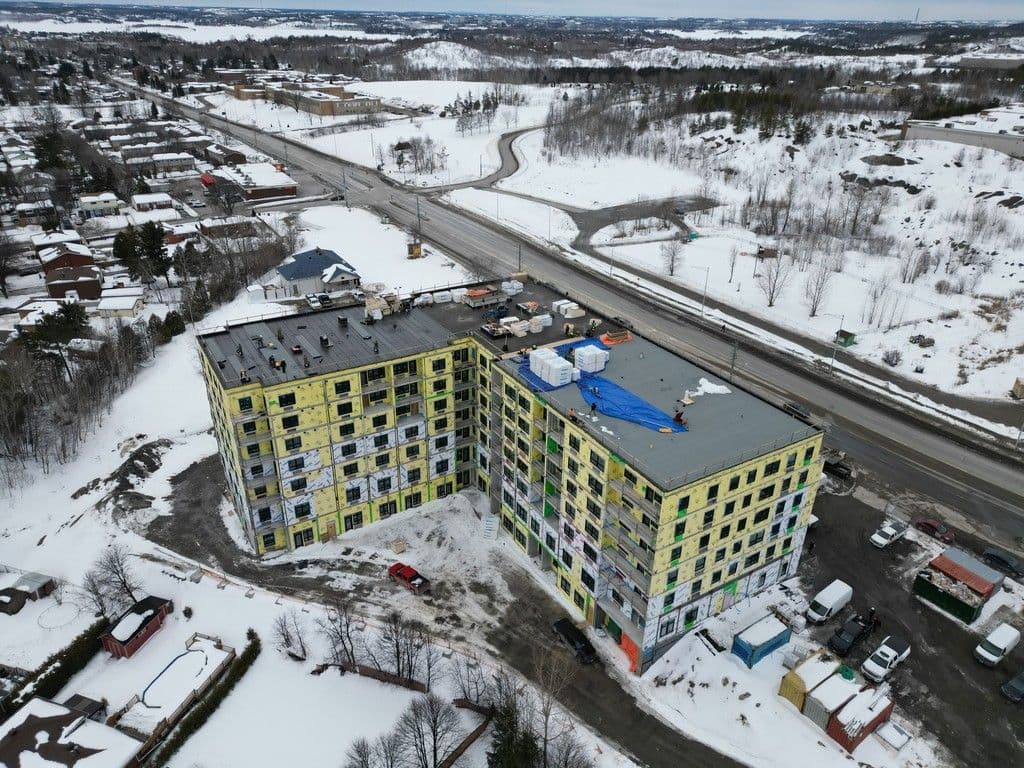

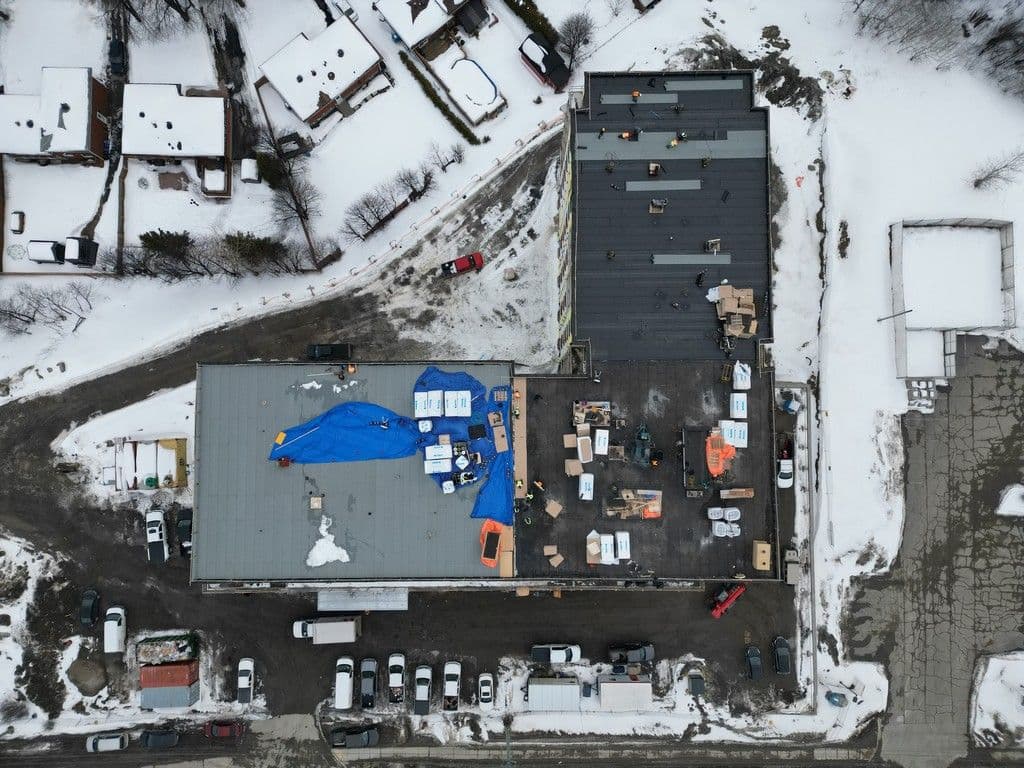

Six Storey 20,000 square foot New Construction Building here for FPC Constructors. This is a future Retirement Home in Sudbury. This was a challenging project being that it was a four-hour drive from Toronto and we also had to do it in the winter months. We laid down tarps over night before snow falls to minimize snow shoveling labour for the client. We hustled and completed this project within four weeks.

Sudbury

Flat Roof System

    Two Layers 3.5” Poly Iso Mopped in Hot Asphalt
    One Layer ½" Fibreboard Mopped in Hot Asphalt
    Elastophone P/S 180 Base Sheet Mopped to Fibreboard
    Sopralene Flam 250GR Cap Sheet in Grey
    Elastophone 180 Thermofusible/Sanded Base Sheet Torched to Primed Concrete
